1620UT / 1620UT SSG Curtain Wall Systems

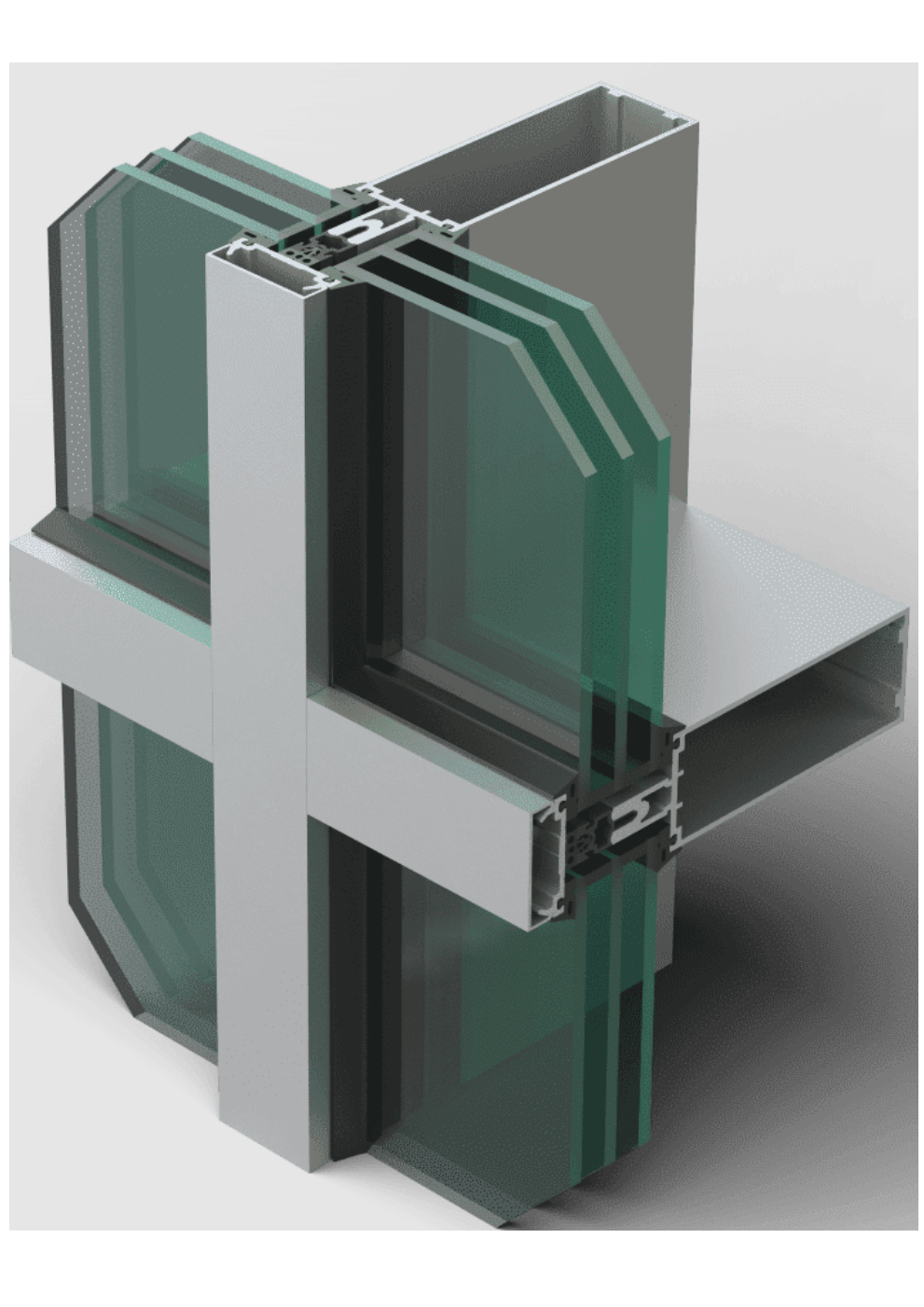

Kawneer’s 1620UT Series merges a minimalistic 2″ sightline with high-performance thermal and seismic capabilities, making it an ideal solution for low- to mid-rise curtain wall applications. With support for both double- and triple-pane glass, vertical SSG, and various mullion options, this system offers flexible detailing and long-lasting performance in challenging climates.

Concealed fasteners, engineered polymer thermal breaks, and integrated entrance compatibility contribute to a smooth monolithic aesthetic while achieving high ratings in structural, thermal, and acoustical testing.

Performance & Features

– 2″ (50.8 mm) narrow sightline
– Standard system depths: 6″ (152.4 mm) or 7-1/2″ (190.5 mm) for 1″ (25.4 mm) infill
– Triple-pane depths: 6-3/4″ (171.5 mm) or 8-1/4″ (209.6 mm) for 1-3/4″ (44.5 mm) infill
– Vertical Structural Silicone Glazing (SSG) option with 1620UT SSG
– Infill compatibility: 1/4″, 1″, and 1-3/4″
– Thermally broken with continuous 1″ (25.4 mm) low-conductance engineered polymer
– Fully tested for air, water, structural, seismic (AAMA 501.4 & 501.6), thermal, and acoustical performance
– Concealed fastener joinery for a sleek façade
– Corner and splayed mullion options
– Open-back horizontals and perimeters for fabrication efficiency
– Silicone-compatible glazing materials
– Seamless integration with Kawneer entrance systems
