Systems

The Metro Aluminum 2400T, 2400THP, and 2500T series are thermally broken aluminum curtain wall systems engineered to meet the energy performance and structural requirements of modern buildings. Each system offers a different profile depth to suit project-specific spans, glazing types, and thermal needs.

The 2400T features a 2″ narrow-profile frame, suitable for tight sightline and lower-span applications. The 2400THP expands on that with a deeper 2″ × 4″ triple-glazed configuration and dual thermal breaks, including an optional fiberglass pressure plate for enhanced thermal isolation. The 2500T, with its 2 1/2″ profile, offers additional strength and capacity.

Performance & Features
– Thermally Broken Design: Polyamide thermal barriers minimize heat transfer and condensation risk in exterior applications

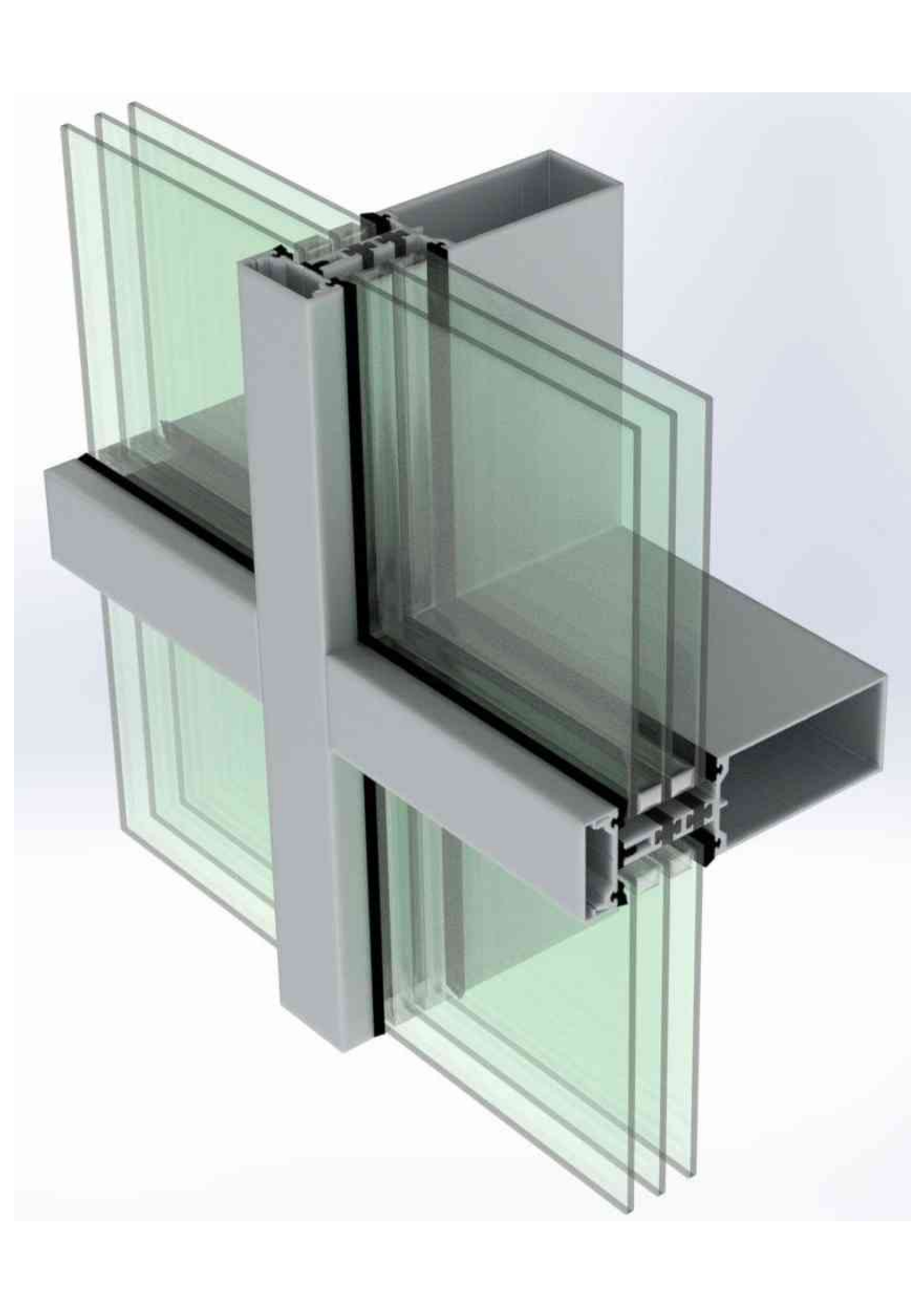

– Enhanced Thermal Envelope: 2400THP supports triple glazing with double thermal pocket and optional fiberglass pressure plate
– Finish Options: Clear, black anodized standard; full range of AAMA-compliant painted finishes available

Recommended Applications
Designed for exterior curtain wall applications in commercial, institutional, and civic buildings. Ideal for energy-focused designs such as schools, recreation centers, libraries, and municipal facilities, where thermal performance, durability, and a clean architectural aesthetic are essential. The 2400THP is particularly well suited for projects pursuing high-efficiency or cold-climate envelopes.
